تفاصيل المنتج:
شروط الدفع والشحن:
|
| يكتب: | اسطوانة هوائية | عرض السكن: | 44 ملم |
|---|---|---|---|
| موقف التركيب: | أي التوجه | مادة الختم: | NBR (مطاط النتريل) |
| معدل التدفق الاسمي (DIN 1343): | 1600 لتر/دقيقة | نطاق تنظيم الضغط: | نطاق تنظيم الضغط |
Description:
Manufacturer : Festo
Product No. : PUN-H-12X2-BL
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Spec Category | Exact Parameter Value for PUN-H-12X2-BL |
|---|---|

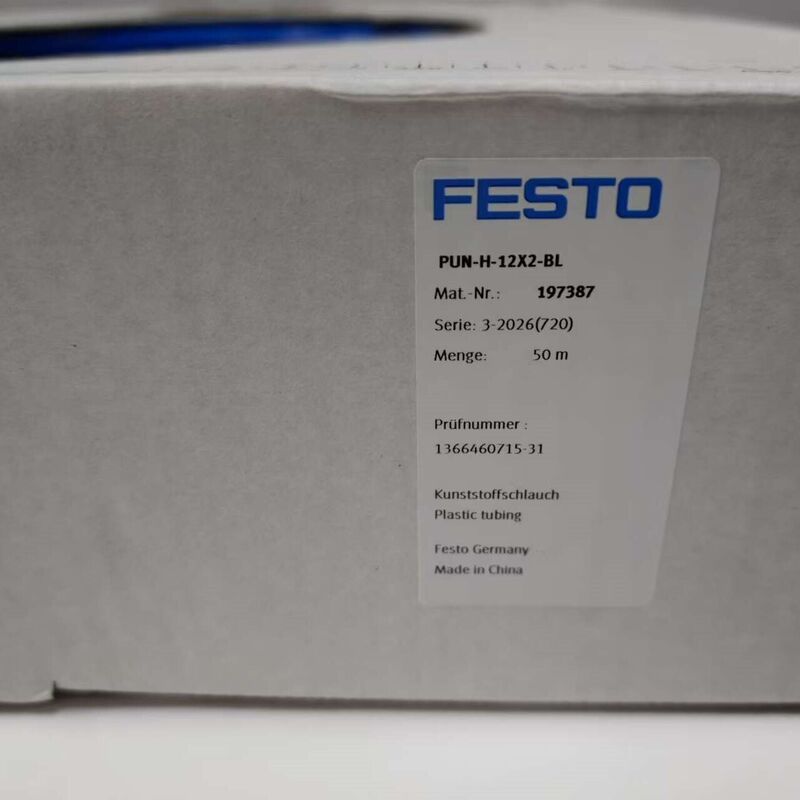

| Full Model Code | PUN-H-12X2-BL |

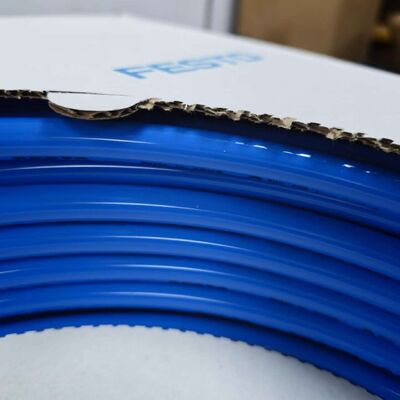

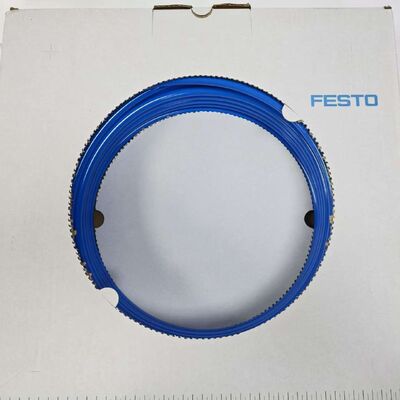

| Product Line | FESTO PUN-H Hydrolysis-Resistant Polyurethane Air Hose |
| Outer Diameter (OD) | 12 mm |
| Wall Thickness | 2 mm |
| Inner Diameter (ID) | 8 mm |
| Color Code | BL = Blue |
| Base Raw Material | Modified hydrolysis-resistant polyurethane (PUN-H special compound) |
| Nominal Operating Pressure (23°C) | 10 bar |
| Minimum Burst Pressure (23°C) | 30 bar |
| Minimum Bend Radius (Static Installation) | 72 mm |
| Minimum Bend Radius (Dynamic Motion Cycles) | 120 mm |
| Permissible Compressed Air Medium | Filtered, dry, lubricated / unlubricated compressed air (ISO 8573-1) |
| Food Contact Compliance | EU 10/2011 food safe standard |
| Fluid Compatibility | Resistant to pneumatic oil mist, neutral cleaning agents, water vapour |
| Regulatory Certifications | CE marked, RoHS compliant, REACH SVHC free |
| Standard Fitting Compatibility | All Festo QS, QS-G, NPQ push-in quick connectors for 12mm OD tubing |
| Physical & Environmental Item | Standard Technical Data |
|---|---|
| Operating Ambient Temperature | -35 °C ~ +60 °C |
| Short-Term Peak Temperature Resistance | Up to +80 °C (intermittent exposure only) |
| Storage & Transport Temperature | -40 °C ~ +70 °C |
| Relative Humidity Tolerance | 0% ~ 100% non-condensing & condensing humid environments |
| Anti-Aging Properties | Hydrolysis resistant, anti-microbial, anti-fungal compound formulation |
| Surface Texture | Smooth inner & outer surfaces to reduce flow friction loss |
| Mechanical Tensile Strength | High elongation recovery, no permanent deformation after bending |
| Chemical Resistance | Resists diluted alkalis, weak acids, mineral oils, soap-based cleaning fluids |
| UV Resistance | Limited UV stability; shield from direct long-term sunlight exposure outdoors |
| Ingress Compatibility | Suitable for mild washdown, splash water, high-humidity workshop conditions |
| Standard Packaging Form | Factory supplied in continuous bulk coils of fixed meter lengths |
| Flame Behaviour | Low flammability PU polymer, non-self-sustaining combustion |
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
