تفاصيل المنتج:
شروط الدفع والشحن:
|
| نوع السلك: | الألياف البوليمرية | امتثال بنفايات: | متوافق |
|---|---|---|---|
| ضغط التشغيل: | 0 بار ... 8 بار | موقف التركيب: | أي |
| مقاس: | 35 | الاتصال المتانة: | 100 |
| سكتة دماغية: | 40 ملم | مادة التحقيق: | الفولاذ المقاوم للصدأ |
| إبراز: | 16-channel PNP digital input module,remote I/O module with warranty,Festo digital input module |
||
Description:
Description: Danfoss

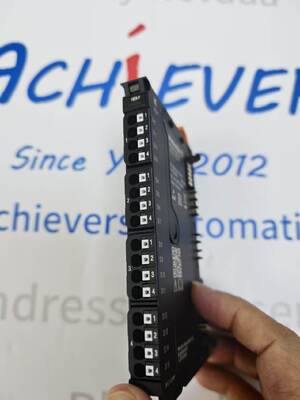

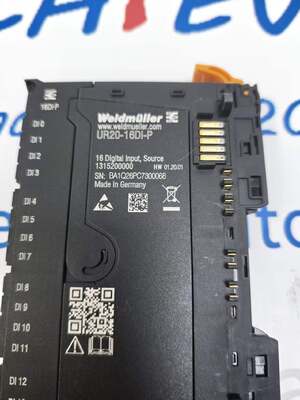

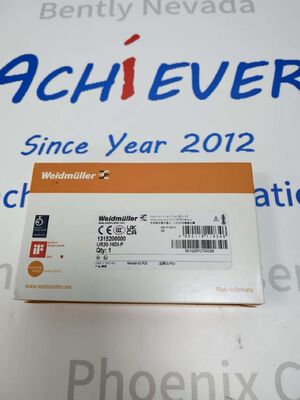

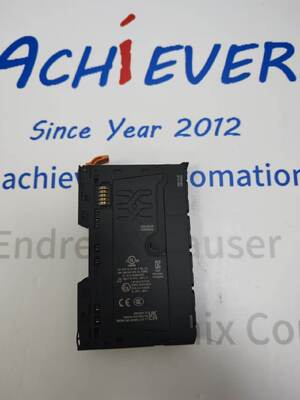

Product No. : UR20-16DI-P
https://www.achievers-automation.com More Products
Detail:
| Parameter Item | Technical Specification |
|---|---|
| Full Part Number | UR20-16DI-P |
| Manufacturer | Weidmuller |
| Factory Order Code | 1315200000 |
| Product Category | u-remote Remote Digital Input Module |
| Digital Input Quantity | 16 Channels |
| Switching Logic | PNP Positive Switching |
| Compatible Sensor Standard | Type 1, Type 3 (EN 61131-2) |
| Rated Supply Voltage | 24 VDC (-15% ~ +20%) |
| High Input Threshold | > 11 VDC |
| Low Input Threshold | < 5 VDC |
| Input Hardware Filter Time | 3 ms fixed |
| Max Input Switching Frequency | 1 kHz |
| Sensor Connection Mode | Single-wire connection |
| Onboard Auxiliary Sensor Power | Not available (external 24VDC required) |
| Galvanic Isolation Strength | 500 VDC between field side & system bus |
| Reverse Polarity Protection | Integrated for power circuit |
| System Bus Consumption (Typ.) | 8 mA |
| Power Segment Current Draw | < 25 mA |
| Process Data Length | 2 Byte (16-bit digital input mapping) |
| Module Overall Dimensions (W×H×D) | 11.5 mm × 120 mm × 76 mm |
| Net Weight | 44 g |
| Mounting Standard | TS35 DIN Rail Snap-on Installation |
| Wiring Terminal Type | Push-in Spring Terminal |
| Supported Wire Cross-Section | 0.14 ~ 1.5 mm² solid/stranded wire (AWG26 ~ AWG16) |
| Specification Item | Technical Value |
|---|---|
| Operating Ambient Temperature | -20 °C ~ +60 °C |
| Storage & Transport Temperature | -40 °C ~ +85 °C |
| Relative Humidity | 5% ~ 95% RH, non-condensing |
| Vibration Resistance Standard | IEC 60068-2-6, 1g acceleration (8.4 Hz ~ 150 Hz) |
| Shock Resistance Standard | IEC 60068-2-27 industrial grade |
| Ingress Protection Rating | IP20 (Control Cabinet Internal Use Only) |
| Supported Fieldbus Protocols | PROFINET RT/IRT, EtherCAT, Modbus/TCP, EtherNet/IP, PROFIBUS DP-V1, CANopen, CC-Link IE TSN |
| System Bus Max Transmission Speed | 48 MBit/s |
| Diagnostic Function | Global module fault diagnosis (no independent channel diagnosis) |
| EMC Compliance | EN 61000-6-2 industrial environment standard |
| Global Safety Certifications | cULus, CE Mark, RoHS Compliant (RoHS 7a/7cI Exemption) |
| REACH SVHC Compliance | Contains lead SVHC substance per standard specification |
| ETIM Classification Code | EC001599 |
| Carbon Footprint (Cradle-to-Gate) | 8,684 kg CO₂ eq. |
| Service Lifespan | Over 10 million plug/unplug module replacement cycles |
