تفاصيل المنتج:
شروط الدفع والشحن:
|
| يكتب: | اسطوانة هوائية | عرض السكن: | 44 ملم |
|---|---|---|---|
| موقف التركيب: | أي التوجه | مادة الختم: | NBR (مطاط النتريل) |
| معدل التدفق الاسمي (DIN 1343): | 1600 لتر/دقيقة | نطاق تنظيم الضغط: | نطاق تنظيم الضغط |
Description:
Manufacturer : Festo

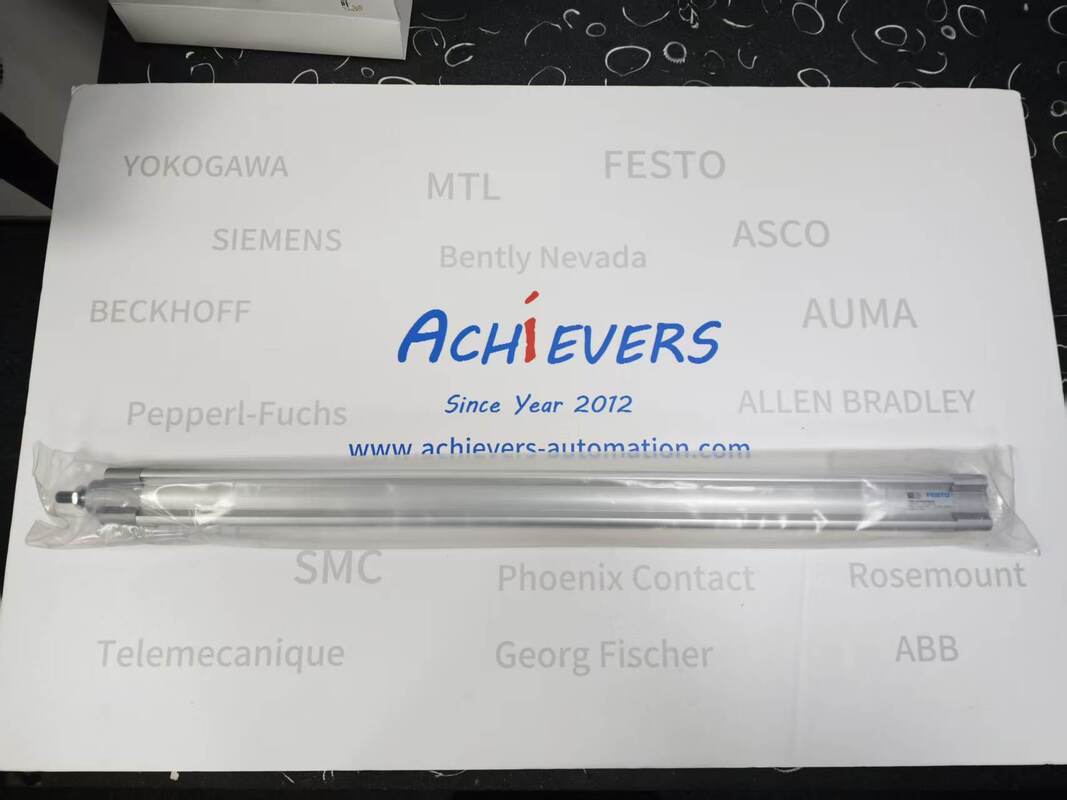

Product No. : DSBC-32-600-PPVA-N3
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Spec Category | Exact Parameter Value for DSBC-32-600-PPVA-N3 |
|---|---|
| Full Model Code | DSBC-32-600-PPVA-N3 |
| Product Series | FESTO DSBC ISO 15552 Standard Pneumatic Cylinder |
| Operating Principle | Double-acting (compressed air drive extend & retract) |
| Nominal Bore Diameter | 32 mm |
| Rated Stroke Length | 600 mm |
| Cushion Type | PPVA: Adjustable pneumatic air cushion on both ends |
| Internal Magnet | N3 built-in piston magnet (for external position sensors) |
| Standard Operating Pressure Range | 0.6 ~ 10 bar |
| Recommended Working Pressure | 4 ~ 8 bar |
| Min. Operating Pressure | 0.2 bar |
| Theoretical Thrust Force (6 bar, extend) | 482 N |
| Theoretical Pull Force (6 bar, retract) | 410 N |
| Standard Medium | Filtered compressed air (ISO 8573-1 Class 3-3-3) |
| Sealing Material | NBR Nitrile rubber main seals, PU scraper rings |
| Max. Permissible Piston Speed | 1 m/s (with PPVA cushion adjusted) |
| Operating Temperature Range | -20 °C ~ +80 °C |
| Air Port Thread Size | G1/8 standard air connection ports |
| Position Sensing Support | Compatible with Festo SMT, SME, SMP series proximity sensors |
| Regulatory Compliance | CE marked, RoHS compliant, ISO 15552 certified |
| Physical & Environmental Item | Standard Technical Data |
|---|---|
| Barrel Material | Hard anodized extruded aluminum alloy |
| Piston Rod Material | Polished stainless steel |
| End Cap Material | Cast aluminum alloy with corrosion resistant coating |
| Piston Bearing | Low-friction polymer composite bearing |
| Ingress Protection Class | IP65 dustproof & splash-proof |
| Net Unit Weight (32×600mm) | Approx. 2.1 kg |
| Mounting Standard | Full ISO 15552 universal mounting interface |
| Compatible Mounting Kits | Foot brackets, front/rear flange, trunnion pin, clevis rod ends |
| Storage & Transport Temperature | -30 °C ~ +90 °C |
| Relative Humidity Tolerance | 5% ~ 95%, non-condensing |
| Shock Resistance Standard | IEC 60068-2-27 industrial mechanical shock test |
| Vibration Resistance Standard | IEC 60068-2-6 workshop vibration compliance |
| Rod Anti-Rotation | Standard free rotation piston rod (anti-rot variant available separately) |
| Cushion Adjustment Component | External fine-tune screw for PPVA air cushion deceleration control |
