تفاصيل المنتج:
شروط الدفع والشحن:
|
| يكتب: | اسطوانة هوائية | عرض السكن: | 44 ملم |
|---|---|---|---|
| موقف التركيب: | أي التوجه | مادة الختم: | NBR (مطاط النتريل) |
| معدل التدفق الاسمي (DIN 1343): | 1600 لتر/دقيقة | نطاق تنظيم الضغط: | نطاق تنظيم الضغط |
| إبراز: | Festo pneumatic cylinder DSBC-32-100,Standard pneumatic cylinder with PPVA,Festo cylinder DSBC-32-100-PPVA-N3,Standard pneumatic cylinder with PPVA,Festo cylinder DSBC-32-100-PPVA-N3 |
||
Description:
Manufacturer : Festo

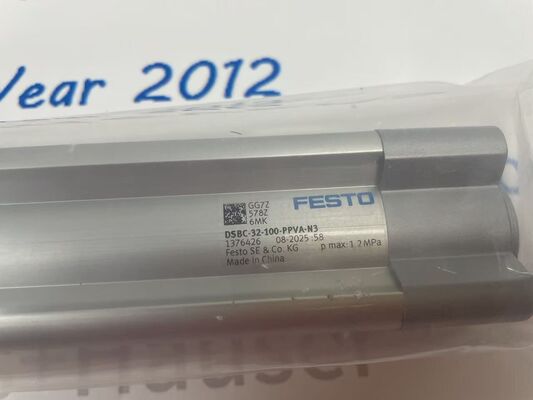

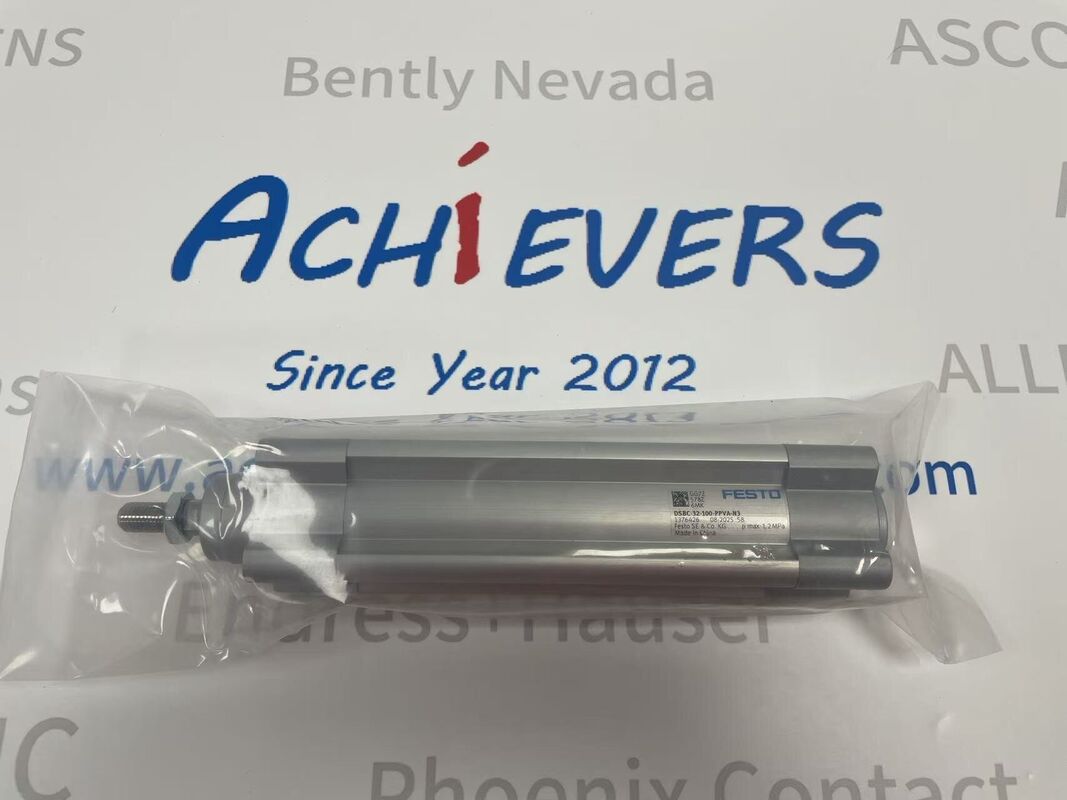

Product No. : DSBC-32-100-PPVA-N3
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details
|
|
Product Model
|
Festo DSBC-32-100-PPVA-N3
|
|
Order Number
|
1376426
|
|
Product Type
|
ISO Standard Pneumatic Cylinder
|
|
Mode of Operation
|
Double-acting
|
|
Piston Diameter
|
32 mm
|
|
Stroke Length
|
100 mm
|
|
Piston Rod Thread
|
M10x1.25
|
|
Operating Pressure Range
|
0.6 bar - 12 bar (0.06 MPa - 1.2 MPa)
|
|
Theoretical Force (6 bar)
|
Advance: 483 N; Return: 415 N
|
|
Cushioning
|
Pneumatic cushioning, adjustable at both ends
|
|
Position Detection
|
Via proximity switch
|
|
Pneumatic Connection
|
G1/8
|
|
Characteristic
|
Specifications
|
|
Housing/Cover Material
|
Coated die-cast aluminium
|
|
Piston Material
|
Wrought aluminium alloy
|
|
Piston Rod Material
|
High-alloy steel
|
|
Cylinder Barrel Material
|
Smooth-anodised wrought aluminium alloy
|
|
Operating Temperature Range
|
-20 °C to +80 °C (-4 °F to +176 °F)
|
|
Corrosion Resistance Class
|
CRC 2 - Moderate corrosion resistance
|
|
Weight
|
Basic weight (0 mm stroke): 465 g; Additional 27 g per 10 mm stroke
|
|
Moving Mass
|
110 g (0 mm stroke); Additional 9 g per 10 mm stroke
|
|
Compliance & Certifications
|
RoHS Compliant; VDMA24364-B1/B2-L (PWIS); ISO 14644-1 Class 6 (Cleanroom); Conforms to ISO 15552
|
|
Operating Medium
|
Compressed air, conforming to ISO 8573-1:2010 (7:4:4)
|
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
