تفاصيل المنتج:
شروط الدفع والشحن:
|
| تشديد عزم الدوران: | 0.6 نيوتن | قطبية الإخراج: | العاصمة |
|---|---|---|---|
| خطأ الخطي: | 0.1٪ | نوع البناء: | م12 |
| نوع الواجهة: | RS-485 ، 2 أسلاك متعددة الأسلاك | حجم الهدف: | 0.3 ملم |
| تبديل التردد: | ≤ 10 هرتز | طول: | 63.5 مم |
| تيار الإخراج: | 4-20 مللي أمبير | ||
| إبراز: | Pepperl+Fuchs KCD2-STC-EX1 isolation barrier,SMART transmitter power supply,EX1 isolated barrier with warranty |
||
Product Details:

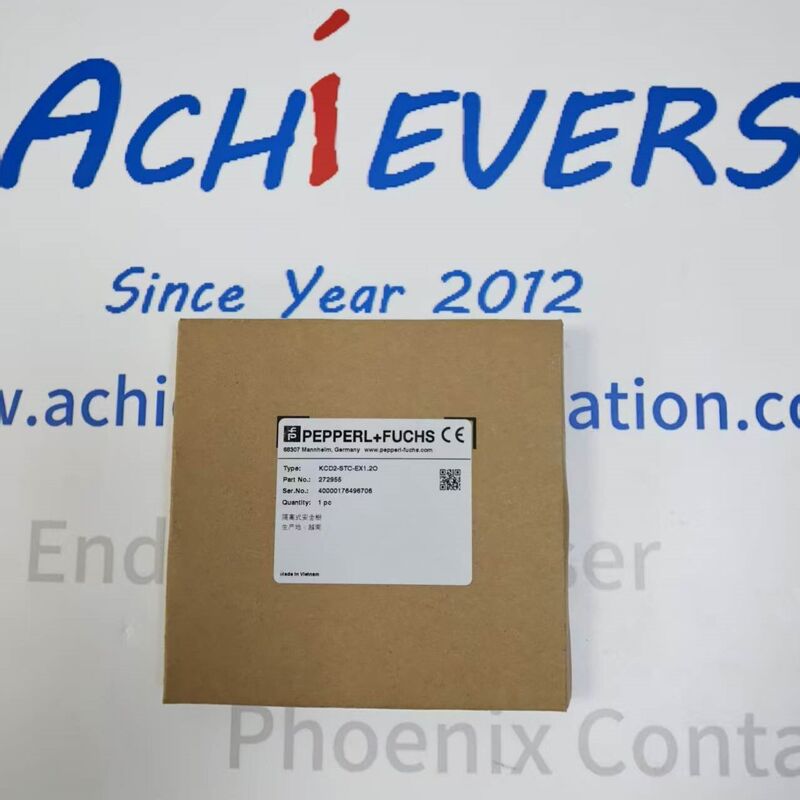

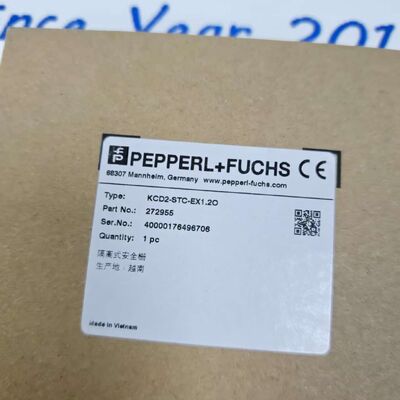

Manufacturer : Pepperl + Fuchs
Product No. : KCD2-STC-EX1
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Specification Item | Technical Parameter | Standard & Functional Remark |
|---|---|---|
| Full SKU Model | KCD2-STC-EX1 | Pepperl+Fuchs K-System standard barrier part number |
| Brand Manufacturer | Pepperl+Fuchs | Global intrinsic safety and explosion protection brand |
| Channel Quantity | 1 Single Channel | Single loop 4–20mA transmitter power supply |
| Safety Integrity Level (SIL) | SIL 2, Systematic Capability SC 3 | IEC/EN 61508 functional safety certification |
| Main Supply Voltage Range | 19 VDC ~ 30 VDC (nominal 24 VDC) | Support cabinet power rail or terminal wiring power input |
| Max Operating Current Draw | ≤ 45 mA @ 24 VDC full load | Low power consumption design |
| Max Power Dissipation | ≤ 800 mW | Low heat generation for dense cabinet installation |
| Field Input Signal Range | 4 mA ~ 20 mA, current limited to 26 mA | Reverse polarity short-circuit protection built-in |
| Field Terminal Open Circuit Voltage | 22 V | Sufficient power for long-distance 2-wire transmitters |
| Control Side Output Signal | 4–20 mA / 1–5 VDC dual signal options | Compatible with PLC, DCS analog input modules |
| Max Control Side Load Resistance | 300 Ω (source output mode) | Standard DCS card load matching |
| Galvanic Isolation Rating | Safe isolation 375 V peak (Input ↔ Output / Input ↔ Power) | IEC/EN 60079-11 intrinsic safety standard |
| Line Fault Detection Threshold | Fault trigger ≤3 mA (open circuit), ≥22 mA (short circuit) | Real-time wiring failure diagnosis |
| Signal Response Settling Time | ≤ 50 ms | Fast analog signal transmission for closed-loop process control |
| Specification Item | Technical Parameter | Installation & Environmental Remark |
|---|---|---|
| Overall Dimension (W × H × D) | 12.5 mm × 114 mm × 122 mm | Ultra-narrow slim housing to save cabinet space |
| Net Unit Weight | Approx. 100 g | Lightweight flame-retardant thermoplastic housing |
| Mounting Standard | 35 mm DIN rail (EN 60715) | Universal industrial cabinet mounting |
| Protection Grade | IP20 | Finger-safe terminals inside control cabinets only |
| Continuous Operating Temperature | -20 °C ~ +60 °C | Full rated performance without temperature derating |
| Storage Temperature Range | -40 °C ~ +80 °C | Stable during warehouse storage and transportation |
| Hazardous Area Marking | II (1)G [Ex ia Ga] IIC; II (1)D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I | Gas, dust and underground mining zone certified |
| Explosion Certificate | BASEEFA 13 ATEX 0077 X | EU ATEX intrinsic safety approval |
| Vibration Resistance | IEC 60068-2-6, 10–150 Hz | Adapt to vibrating chemical and mining equipment |
| Diagnostic Indicator | Single LED status light | Visual power and loop fault status indication |
| Compliance Standards | ATEX 2014/34/EU, IECEx, UL cULus, EN 61326-1 | Global industrial explosion protection norms |
Brand
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
