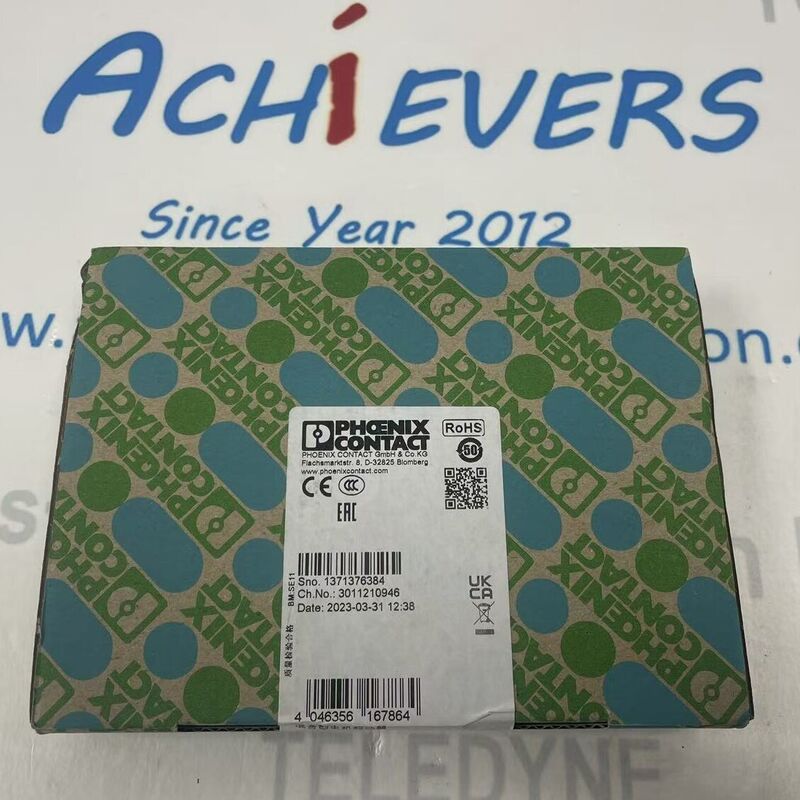

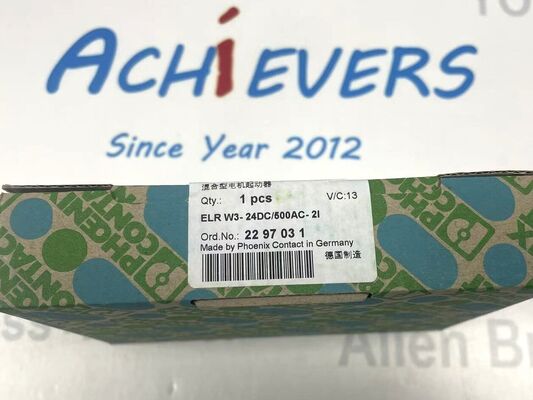

Phoenix Contact 24DC500AC-2I 2297031 Industrial Hybrid Motor Starter
Product Details:
Manufacturer : Phoenix Contact
Product No. : 2297031
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details
|
|
Manufacturer
|
Phoenix Contact
|
|
Product Model
|
ELR W3-24DC500AC-2I
|
|
Order Number
|
2297031
|
|
Product Type
|
Hybrid Motor Starter (Reversing)
|
|
Product Family
|
CONTACTRON
|
|
Number of Phases
|
3
|
|
Control Voltage
|
24 V DC (19.2 V DC - 30 V DC range)
|
|
Rated Control Current
|
40 mA (at 24 V DC)
|
|
AC Output Voltage
|
500 V AC (42 V AC - 550 V AC range)
|
|
Rated Output Current
|
2.4 A (AC-51, AC-53a)
|
|
Switching Frequency
|
≤ 2 Hz (load-dependent)
|
|
Power Dissipation
|
2.2 W (nominal); 1.1 W (min); 3.3 W (max)
|
|
Attribute
|
Specifications
|
|
Mounting Type
|
DIN Rail Mounting
|
|
Dimensions (W x H x D)
|
22.5 mm x 107 mm x 114 mm
|
|
Weight
|
Approx. 283 g
|
|
Operating Temperature
|
Typical industrial range (compliant with IEC standards)
|
|
Permissible Humidity (Operating/Storage)
|
5% to 95% (non-condensing)
|
|
Connection Type
|
Screw connection; M3 thread; Wire stripping length 8 mm
|
|
Conductor Cross-Section
|
0.2 mm² - 2.5 mm² (hard/flexible); AWG 24 - 14
|
|
Insulation Voltage
|
500 V; Test surge voltage: 6 kV
|
|
Safety Compliance
|
SIL 3, PL e; IEC 61508-1, ISO 13849
|
Brand
Phoenix Contact China is a subsidiary of the German Phoenix Contact Group in China. It entered China in 1993 and its headquarters is located in Nanjing. It serves as the global competitiveness center of the Phoenix Contact Group. It has subordinate companies including Phoenix Contact (China) Investment Co., LTD., Nanjing Phoenix Contact Electric Co., LTD., Phoenix Contact Asia Pacific Electric (Nanjing) Co., LTD., Phoenix Contact (Nanjing) Intelligent Manufacturing Technology Engineering Co., LTD., Phoenix Contact Asia Pacific Logistics (Nanjing) Co., LTD., and Phoenix Contact (Nanjing) New Energy Vehicle Technology Co., LTD. As a globally renowned brand in the fields of electrical connection and electronic interface, as well as industrial automation, Phoenix Contact has always put its innovative spirit into practice, closely following changes in market demand, and driven by "customer needs and industry applications". We provide customers and partners with practical and effective solutions, including specialized, refined and differentiated intelligent devices, automation systems and digital industrial solutions in areas such as industrial components and electronic technology, device connection technology, industry management and automation.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Q:Which are the best-selling products?
A: Many brands of products have been supplied . For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Hand Communicator TREXCHPNAWS1S
