تفاصيل المنتج:
شروط الدفع والشحن:
|
| تصنيع: | يوكوجاوا | نموذج: | AAI143-S50 |
|---|---|---|---|
| نوع المنتج: | وحدة الإدخال التناظرية | الرموز 1: | S - النوع القياسي |
| رموز اللاحقة 2: | 5- بدون حماية من الانفجار | رموز الإضافات 3: | 0 - النوع الأساسي |
| إشارة الإدخال: | 4 إلى 20 مللي أمبير | وزن الشحن: | 1.5 كجم |
| إبراز: | YOKOGAWA YTA610 temperature transmitter,industrial temperature transmitter with warranty,YTA610-JA1A4DB process temperature sensor,industrial temperature transmitter with warranty,YTA610-JA1A4DB process temperature sensor |
||
Product Details:
Manufacturer : YOKOGAWA

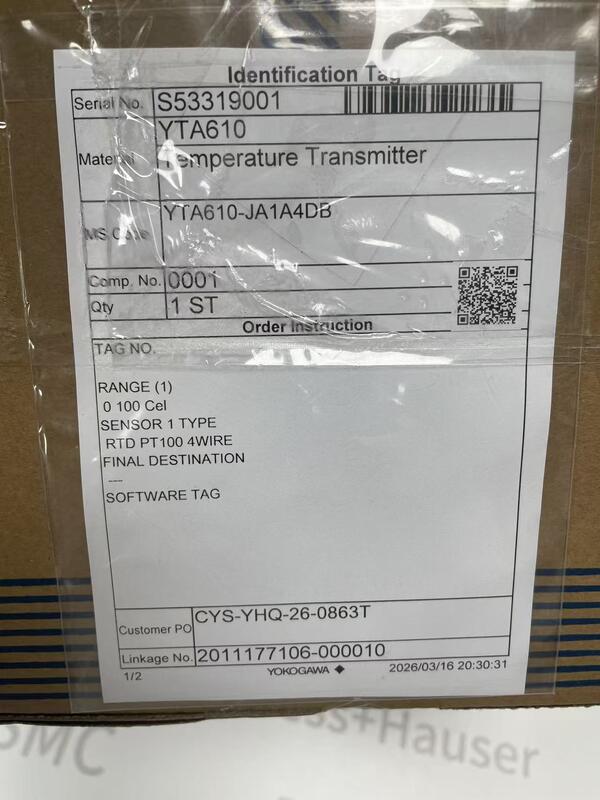

Product No. : YTA610-JA1A4DB
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details
|
|
Product Model
|
YOKOGAWA YTA610-JA1A4DB
|
|
Product Series
|
YTA610 Series (OpreX Field Instruments)
|
|
Product Type
|
Field-Mount Temperature Transmitter
|
|
Input Type
|
Single/Dual Input (RTD, Thermocouple, Resistance, DC Voltage)
|
|
Measurement Accuracy
|
A/D Accuracy: 0.14℃ (for Pt100); D/A Accuracy: 0.03%
|
|
Output Signal
|
4-20mA DC analog signal + HART 7 digital protocol
|
|
Response Time
|
Adjustable damping time; typical 0.1s to 60s
|
|
Operating Voltage
|
10 V DC - 30 V DC (Ex ia); Complies with overvoltage category I
|
|
Parameter Adjustment
|
Local adjustment via indicator switches; HART communicator compatible
|
|
Dual-Input Function
|
Temperature difference/average calculation; sensor backup switching
|
|
Sensor Matching
|
IEC60751 standard compliance; supports Callendar-Van Dusen coefficients
|
|
Dielectric Strength
|
500 V AC r.m.s. for 1 minute
|
|
Characteristic
|
Specifications
|
|
Housing Design
|
Dual-chamber field-mount housing
|
|
Housing Material
|
Corrosion-resistant metal (suitable for industrial environments)
|
|
Protection Rating
|
IP66 / IP67
|
|
Operating Temperature Range
|
Ex ia: -40℃ to 70℃ (T4), -40℃ to 50℃ (T5); Ex ic: -30℃ to 70℃ (T4)
|
|
Hazardous Location Rating
|
Ex ia IIC T5...T4 Ga; Ex ic IIC T5...T4 Gc
|
|
Terminal Specifications
|
Supply/output: +, - terminals; Sensor circuit: 1-5 terminals
|
|
Electrical Parameters (Ex ia)
|
Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mH (supply/output); Uo=6V, Io=90mA, Po=135mW (sensor)
|
|
Compliance & Certifications
|
IEC 60079-0:2011, IEC 60079-11:2011; IECEx Certificate No. IECEx FMG 16.0014 X
|
|
SIL Compliance
|
SIL applicable for software version R1.03.01+; Production date March 2017+ (HART type)
|
|
Installation Type
|
Field-mount, compatible with standard industrial mounting accessories
|
