Product Details:
Manufacturer : SHAKO
Product No. : UFRL-04
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting profesional procurement and long-term cooperation.
Detail:
|
Specification
|
Value
|
|

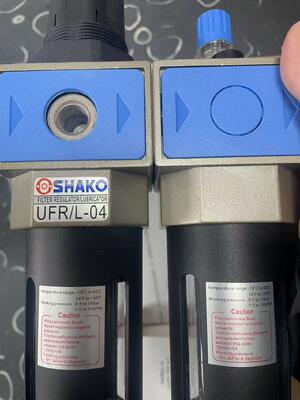

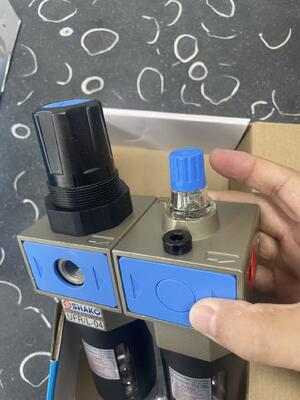

Product Model
|
SHAKO UFRL-04
|
|
Manufacturer
|
SHAKO Co., Ltd.
|
|
Product Family
|
SHAKO UFRL Series Filter Regulator Lubricators
|
|
Product Type
|
Integrated Filter Regulator Lubricator (FRL)
|
|
Port Size
|
1/2" (BSP, NPT, or RC thread options)
|
|
Body Material
|
Aluminum Die-Cast
|
|
Filter Element
|
PE (5μm standard, 40μm optional); Sintered brass optional
|
|
Bowl Material
|
Polycarbonate (standard); Anti-acid & alkali / aluminum (optional)
|
|
Drain Type
|
Semi-automatic (drains below 0.5 kgf/cm²); Manual/automatic optional
|
|
Regulator Construction
|
Piston-type
|
|
Accessories Included
|
Pressure gauge, mounting bracket, plug, 4x screws
|
|
Quality Certification
|
ISO 9001 Certified
|
|
Parameter
|
Details
|
|
Operating Temperature Range
|
-10°C to +60°C
|
|
Working Medium
|
Filtered Compressed Air
|
|
Operating Pressure Range
|
0.5 to 9.9 kgf/cm² (7.1 to 140.8 psi)
|
|
Maximum Proof Pressure
|
15 kgf/cm² (213.3 psi)
|
|
Maximum Flow Rate (ANR)
|
2600 L/min
|
|
Filter Bowl Capacity
|
105 cc
|
|
Lubricator Bowl Capacity
|
125 cc
|
|
Relative Humidity
|
Up to 95% (no condensation)
|
|
Net Weight
|
930 g (with standard bowl); 1230 g (with aluminum bowl)
|
|
Special Features
|
Oil replenishment without air supply shutdown; Interchangeable filter elements
|
Brand:
Taiwan Xingong Co., Ltd. was established in 1980 and created the "SHAKO" brand. Jinan Xingong Pneumatic Machinery Co., Ltd. is responsible for the sales and service of Taiwan Xingong products. Xingong Company continues to explore in the field of pneumatic industrial technology to maintain its priority position in industrial manufacturing technology, and has become a pneumatic component R&D and manufacturer with strength and brand effect in Taiwan's pneumatic industry. Guided by market and customer needs, the company invests resources and uses computer network control from material procurement to finished product output to improve product quality and make product types and specifications increasingly complete. The products meet the needs of customers at all levels in different fields with reliable and practical cost-effectiveness. They are widely used in various industries, such as automobile assembly, plastic machinery, electronic machinery, light industrial textiles, food packaging and other automated industrial fields. The products are exported to Japan, South Korea, Canada, Australia, Western Europe and other places, and are deeply trusted and praised by customers.
