Product Details:
Manufacturer : MW MEAN WELE
Product No. : SE-1000-24
https://www.achievers-automation.com More Products

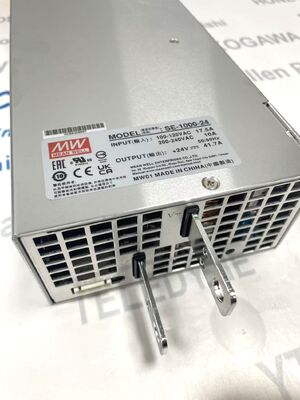

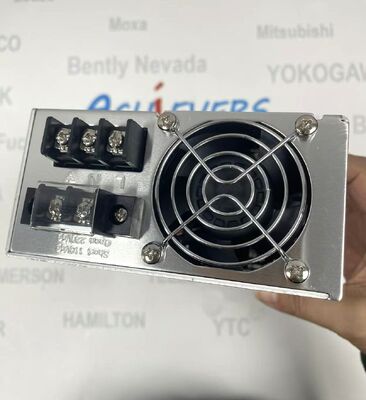

The Mean Well SE-1000-24 is a high-power, single-output industrial switching power supply from Mean Well, a global leader in power supply solutions for industrial, commercial, and medical applications. As an enhanced version of the NE series, this 1000W power supply delivers a stable 24V DC output with 41.7A current capacity, featuring a compact iron housing and high power density of 7.3W/in³. Designed with multiple protection mechanisms and remote control capabilities, it is widely used in industrial automation systems, servo drives, PLC controllers, communication equipment, and medical devices, providing reliable and efficient power support while complying with international safety and environmental standards.
Description:
|
Parameter Category
|
SE-1000-24 Specifications
|
|
Output Parameters
|
Output voltage: 24V DC (adjustable range: 22-27.5V); Output current: 41.7A; Output power: 1000.8W; Voltage accuracy: ±1%; Ripple & noise: 200mVp-p; Voltage regulation rate: ±0.5%; Load regulation rate: ±0.5%
|
|
Input Parameters
|
Input voltage range: 90-132VAC/180-264VAC/254-370VDC (switchable); Input frequency: 47-63Hz; Inrush current: 55A (cold start at 230VAC); Leakage current: 2.5mA (at 240VAC)
|
|
Efficiency & Protection
|
Conversion efficiency: 88%; Protection functions: Short-circuit/overload/overvoltage/overheat protection; DC OK signal output (3.3-5.6V for normal operation, 0-1V for shutdown)
|
|
Mechanical Parameters
|
Housing type: Iron shell; Dimensions (L×W×H): 278×127×63.5mm; Net weight: 2.5kg; Wiring method: 3P/10mm covered terminal block (input), copper busbar (output)
|
|
Environmental Adaptability
|
Operating temperature: -20℃ to +60℃ (derating required at high temperatures); Storage temperature: -40℃ to +85℃; Working humidity: 20%-90%RH (non-condensing); Vibration resistance: 10-500Hz, 2G (10 mins/cycle, X/Y/Z axes for 60 mins each)
|
|
Certification & Reliability
|
Certifications: UL/CUL; MTBF: ≥251,600 hours (MIL-HDBK-217F, 25℃); Compliance: RoHS lead-free standard; Insulation strength: Input-output: 3kVAC; Input-housing: 1.5kVAC; Output-housing: 0.5kVAC (1 minute)
|
Brand:
"MEAN WELL" was derived from his English dictionary
This meaning is consistent with Mr. Lin's personal belief – that one who has right thinking, good intentions and runs a legitimate business, can persist and accomplish a noble goal.
In 1986, Taiwan's OEM/ODM orders from the electronic industry were booming, however, MEAN WELL gradually abandoned this business model and decided to cultivate our own brand. We started to develop standard switching power supplies and paid much more attention to quality and reliability. MEAN WELL means "Quality Switching Power Supply,” this slogan is actually the extension of the original of the enterprise.
