المنجمين يجعلون كل احتياجاتك قابلة للتحقيق
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
| حماية: | IP 65 ؛ IP 67 ؛ IP 68 ؛ IP 69K | تصنيع: | IFM |
|---|---|---|---|
| مادة الجسم المصبوبة: | TPU (يوريتان) | خالي من السيليكون: | نعم |
| قابلية المدى: | ما يصل إلى 400:1 | فئة الحماية: | ثانيًا |
| إبراز: | IFM O5H500 photoelectric sensor,reflective photoelectric sensor,IFM industrial sensor with warranty,reflective photoelectric sensor,IFM industrial sensor with warranty |
||
Product Details:
Manufacturer : IFM
Product No. : O5H500
https://www.achievers-automation.com More Products

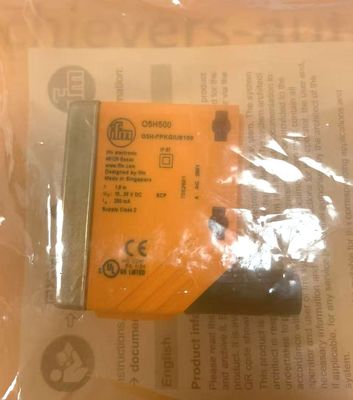

The IFM O5H500 is a high-performance diffuse reflection photoelectric sensor engineered for precise non-contact object detection in industrial automation environments. As a key member of IFM’s O5 Series, it integrates advanced background suppression technology with an extra-long sensing range, enabling reliable target identification while ignoring irrelevant background elements. Equipped with a bright red LED light source, intuitive teach-button configuration, and rugged construction, this sensor excels in applications requiring flexibility, speed, and durability—from packaging lines to material handling systems. Its compact rectangular design and broad environmental tolerance make it a versatile solution for diverse industrial sectors, upholding IFM’s reputation for innovative sensing technology.
Description:
| Model Number | O5H500 |
| Manufacturer | IFM electronic |
| Product Family | O5 Series |
| Product Type | Diffuse Reflection Photoelectric Sensor |
| Sensing Principle | Diffuse reflection with precise background suppression |
| Light Source | Red LED; Wavelength: 624 nm |
| Sensing Range | 50–1800 mm (for 200×200 mm white paper, 90% reflectivity)
|
| Light Spot Diameter | Maximum 50 mm (at 1000 mm detection distance) |
| Output Configuration | PNP 3-wire; Selectable light-on/dark-on mode |
| Output Ratings | Max. continuous current load: 200 mA; Max. voltage drop: 2.5 V DC |
| Switching Frequency | 1000 Hz |
| Power Requirements | 10–36 V DC; Current consumption: 25 mA |
| Protection Features | Reverse polarity protection, pulse-type short-circuit protection, overload protection |
| Physical Dimensions | 56 mm (H) × 18.2 mm (W) × 46.8 mm (L) |
| Weight | Approx. 67.5 g |
| Housing Material | Shell: Polyamide (PA); Front frame: Special steel; Operation interface: TPU |
| Lens Material | PMMA (Polymethyl Methacrylate) |
| Environmental Resistance | Ambient temperature: -25°C to +60°C; Protection rating: IP67 |
| Electrical Connection | 4-pin M12 male connector |
| Display & Operation | Yellow LED (switch status indicator); Teach button for calibration; Electronic lock |
| Compliance & Reliability | EMC: EN 60947-5-2; MTTF: 360 years; cULus Power Class 2 compliant |
BRAND
ifm is a globally renowned brand in the field of industrial automation, founded in October 1969. The company was established by Gerd Marhofer and Robert Buck, with its headquarters located in Essen, Germany.Driven by the passion for developing sensors of extraordinary quality and providing excellent customer service, ifm has grown into one of the largest manufacturers of industrial sensors and controls. It has more than 70 subsidiaries worldwide, covering major countries in North America, South America, Asia, Europe, and Africa. With over 6,500 employees, it develops, produces, and distributes products to 150,000 customers in the industrial automation field
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, Endress+Hauser, MTL, Allen-Bradley, Pepperl+Fuchs, YOKOGAWA,Rosemount, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, Honeywell, Siemens and etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 12 years:
|
Manufacture |
Products |
|
Bently Nevada |
3500 Vibration Monitoring System |
|
3300 Proximity Probes, Sensors & Transducer Systems |
|
|
ALLEN BRADLEY |
Industrial Control Products |
|
Pepperl-Fuchs |
Industrial Sensors & Isolated Barrier |
|
MTL Instruments |
Isolated Barrier |
|
Endress+Hauser |
Flow, Level, Liquid Analysis Instrument |
|
YOKOGAWA |
DCS & Field Instruments & Process Analyzers |
|
TE |
Dynamic Products |
|
Georg Fischer |
Piping System |
|
SMC |
controls, process, and Industrial products |
|
SICK |
Laser Sensor |
|
FESTO |
Pneumatic & Electric Automation Product |
|
Rosemount |
Analytical Products |
|
ASCO |
Solenoid Valves |
|
IFM |
Sensors & Controllers |
|
SCHMERSAL |
Safety switches & Safety Systems |
|
ABB |
V18345 Valve Positioner |
|
SIEMENS |
PLC modules & Transmitter |
|
FISHER |
DLC3100 Digital Level Controller |
|
TELEDYNE |
Oxygen Sensor & Fuel Cell |
|
DETCON |
Gas Detection Products |
|
HONEYWELL |
Switches & Transmitter |
|
VEGA |
Level Measurement Products |
|
AUMA |
Electric Actuators and Gearboxes |
|
YASKAWA |
Industrial Ac Drives |
|
BECKHOFF |
Controllers & I/O Modules |
|
BALLUFF |
Linear Position Sensors |
|
B&R |
PLC Module |
|
Phoenix Contact |
Housing |
|
Harting |
Connector Han |
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
